Admore 6″ Heavy Duty Centrifugal Inline Duct Fan — Metal, 325 CFM (A-ID6)
335.000 .د.ب
The Admore A-ID6 6″ Heavy-Duty Centrifugal Inline Duct Fan delivers 325 CFM (550 m³/h) at 42 dB from a 95 W single-phase 220-240 V motor (2,580 RPM). Blue powder-coated metal body, 150 mm duct collars. Mid-size of the AID family for kitchen and grow-tent extraction.
- Free delivery Orders over AED 200
- Manufacturer warranty Coverage on every brand
- Easy returns 7-day return window
Buying in bulk?
Open a trade account for wholesale pricing, credit terms and priority support.
Open a Trade AccountSpecifications
Additional information
| Brand | Admore |
|---|---|
| Model | A-ID6 |
| Type of Fan | Heavy-Duty Centrifugal Inline Duct Fan |
| Mounting Type | Ceiling / Wall Mount |
| Voltage | 220-240V/50Hz |
| Power Consumption (W) | 95 W |
| Phase | Single |
| Body Material | Metal (Blue Powder-Coated) |
| Blade Material | Metal |
| Blade Diameter | 6" (150 mm) |
| Duct Size | 6" (150 mm) |
| Color | Blue |
| Blade Speed (RPM) | 2,580 RPM |
| Airflow (CFM) | 325 CFM |
| Airflow (m³/h) | 550 m³/h |
| Noise Level (dB) | 42 dB |
| Operating Environment | -10°C to +50°C |
| Warranty | 2 Years |
| Safety certifications | CE, RoHS, G.Mark, ESMA |
Description
Description
Overview
The Admore A-ID6 is a 6-inch metal centrifugal inline duct fan in cobalt blue, designed for inline installation on 150mm flexible or rigid ducting. Balanced metal impeller blades spin at 2580 RPM to move 325 CFM (550 m³/h) of air through the duct run.
Construction & Materials

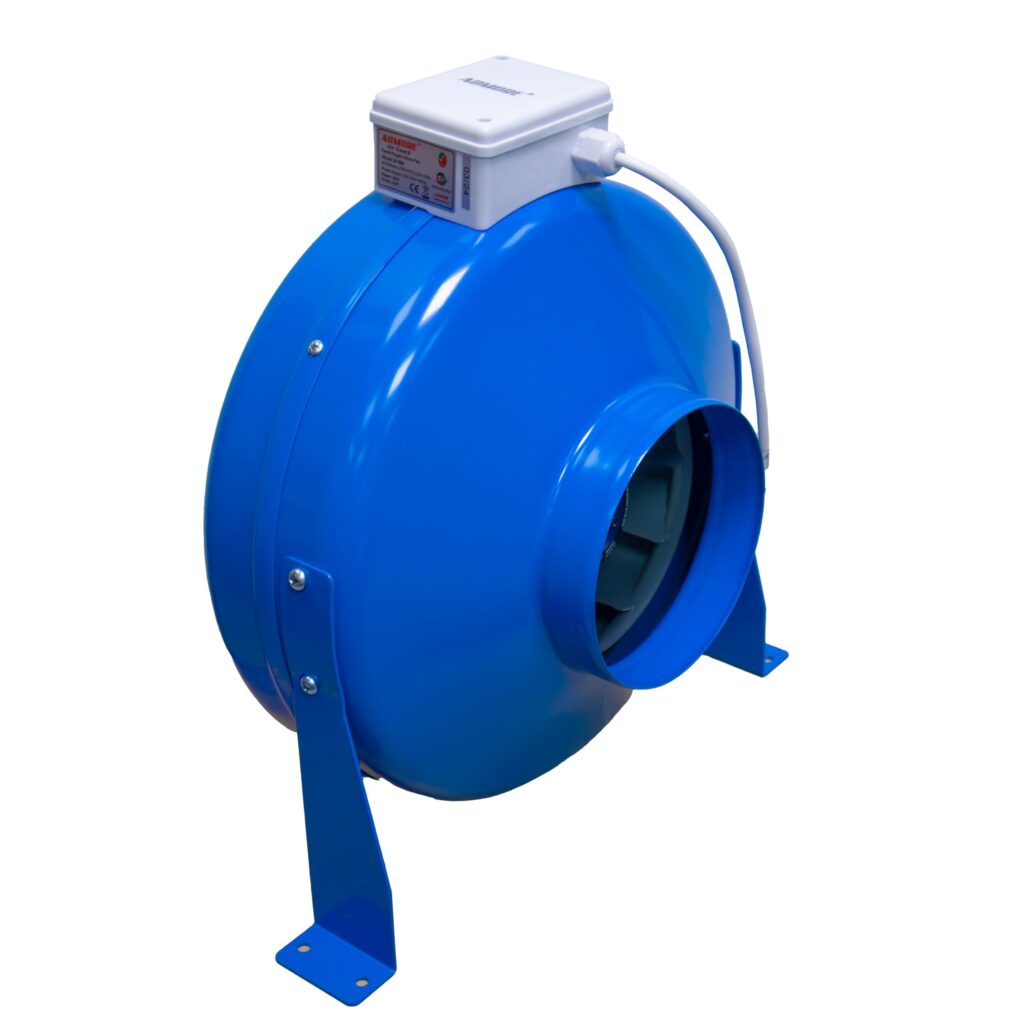

Round powder-coated metal body in cobalt blue, with metal impeller blades inside the duct chamber and a white plastic junction box on top housing the electrical connections. Two powder-coated steel mounting feet at the base for screw-fixing to a wall, ceiling or duct frame. Sized for 6-inch (150mm) duct systems.
Compliance & Certifications
Carries CE, RoHS, G.Mark and ESMA certifications, meeting EU and UAE electrical safety, restricted-substance and product-conformity standards for the GCC market. Operates on 220-240V single-phase mains at 50Hz, drawing 95W at full speed. Noise output is rated at 42dB.
Applications
Larger residential bathrooms, kitchen range hood ducting, starter grow tents (1×1m, 1.2×1.2m), home workshops, server rooms and home cinemas. Commonly paired with a carbon filter for odor scrubbing in apartment grow setups.
Installation Notes
Mounts horizontally or vertically along the duct run using the supplied mounting feet. Can be suspended from above with rope-ratchet hangers in grow rooms or screw-mounted to a wall or ceiling for permanent installations. Compatible with 6-inch (150mm) flexible or rigid ducting on both inlet and outlet sides.
