Admore 10″ Heavy Duty Centrifugal Inline Duct Fan — Metal, 621 CFM (A-ID10)
470.000 .د.ب
The Admore A-ID10 10″ Heavy-Duty Centrifugal Inline Duct Fan delivers 621 CFM (1,050 m³/h) at 47 dB from a 155 W single-phase 220-240 V motor (2,450 RPM). Blue powder-coated metal body, 250 mm duct collars. High-capacity inline for commercial and industrial extraction.
- Free delivery Orders over AED 200
- Manufacturer warranty Coverage on every brand
- Easy returns 7-day return window
Buying in bulk?
Open a trade account for wholesale pricing, credit terms and priority support.
Open a Trade AccountSpecifications
Additional information
| Brand | Admore |
|---|---|
| Model | A-ID10 |
| Type of Fan | Heavy-Duty Centrifugal Inline Duct Fan |
| Mounting Type | Ceiling / Wall Mount |
| Voltage | 220-240V/50Hz |
| Power Consumption (W) | 155 W |
| Phase | Single |
| Body Material | Metal (Blue Powder-Coated) |
| Blade Material | Metal |
| Blade Diameter | 10" (250 mm) |
| Duct Size | 10" (250 mm) |
| Color | Blue |
| Blade Speed (RPM) | 2,450 RPM |
| Airflow (CFM) | 621 CFM |
| Airflow (m³/h) | 1,050 m³/h |
| Noise Level (dB) | 47 dB |
| Operating Environment | -10°C to +50°C |
| Warranty | 2 Years |
| Safety certifications | CE, RoHS, G.Mark, ESMA |
Description
Description
Overview
The Admore A-ID10 is a 10-inch metal centrifugal inline duct fan in cobalt blue, designed for inline installation on 250mm flexible or rigid ducting. Balanced metal impeller blades spin at 2450 RPM to move 621 CFM (1050 m³/h) of air through the duct run.
Construction & Materials

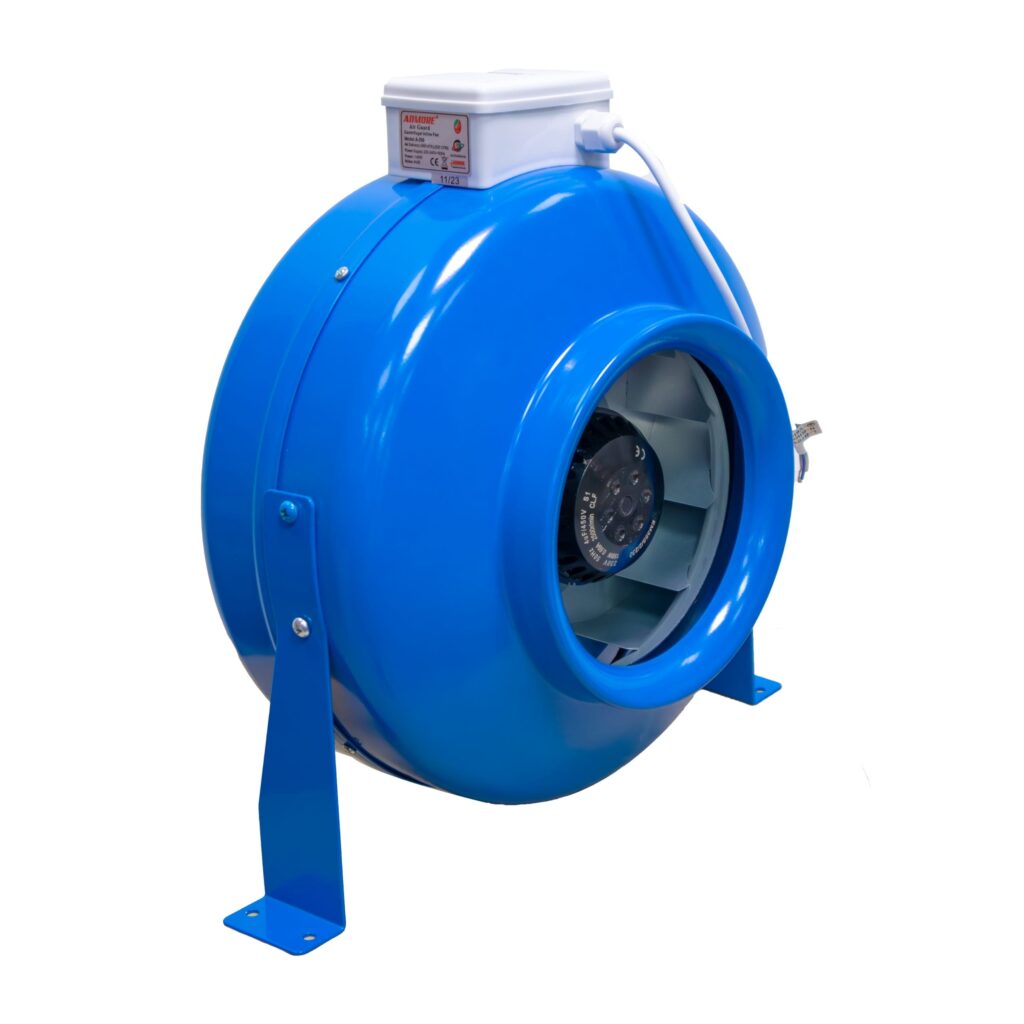

Round powder-coated metal body in cobalt blue, with metal impeller blades inside the duct chamber and a white plastic junction box on top housing the electrical connections. Two powder-coated steel mounting feet at the base for screw-fixing to a wall, ceiling or duct frame. Sized for 10-inch (250mm) duct systems.
Compliance & Certifications
Carries CE, RoHS, G.Mark and ESMA certifications, meeting EU and UAE electrical safety, restricted-substance and product-conformity standards for the GCC market. Operates on 220-240V single-phase mains at 50Hz, drawing 155W at full speed. Noise output is rated at 47dB.
Applications
Commercial workshops, industrial-scale grow rooms (2×2m and larger), restaurant range hood ducting, paint and welding booths, and ventilation for densely populated office floors.
Installation Notes
Mounts horizontally or vertically along the duct run using the supplied mounting feet. Can be suspended from above with rope-ratchet hangers in grow rooms or screw-mounted to a wall or ceiling for permanent installations. Compatible with 10-inch (250mm) flexible or rigid ducting on both inlet and outlet sides.
