Admore 4″ Heavy Duty Centrifugal Inline Duct Fan — Metal, 162 CFM (A-ID4)
295.000 .د.ب
The Admore A-ID4 4″ Heavy-Duty Centrifugal Inline Duct Fan delivers 162 CFM (275 m³/h) at 35 dB from a 65 W single-phase 220-240 V motor (2,350 RPM). Blue powder-coated metal scroll housing with side-mounted junction box and 100 mm duct collars. Step up from Airex XC-100 for pressure-driven extraction.
- Free delivery Orders over AED 200
- Manufacturer warranty Coverage on every brand
- Easy returns 7-day return window
Buying in bulk?
Open a trade account for wholesale pricing, credit terms and priority support.
Open a Trade AccountSpecifications
Additional information
| Brand | Admore |
|---|---|
| Model | A-ID4 |
| Type of Fan | Heavy-Duty Centrifugal Inline Duct Fan |
| Mounting Type | Ceiling / Wall Mount |
| Voltage | 220-240V/50Hz |
| Power Consumption (W) | 65 W |
| Phase | Single |
| Body Material | Metal (Blue Powder-Coated) |
| Blade Material | Metal |
| Blade Diameter | 4" (100 mm) |
| Duct Size | 4" (100 mm) |
| Color | Blue |
| Blade Speed (RPM) | 2,350 RPM |
| Airflow (CFM) | 162 CFM |
| Airflow (m³/h) | 275 m³/h |
| Noise Level (dB) | 35 dB |
| Operating Environment | -10°C to +50°C |
| Warranty | 2 Years |
| Safety certifications | CE, RoHS, G.Mark, ESMA |
Description
Description
Overview
The Admore A-ID4 is a 4-inch metal centrifugal inline duct fan in cobalt blue, designed for inline installation on 100mm flexible or rigid ducting. Balanced metal impeller blades spin at 2350 RPM to move 162 CFM (275 m³/h) of air through the duct run.
Construction & Materials

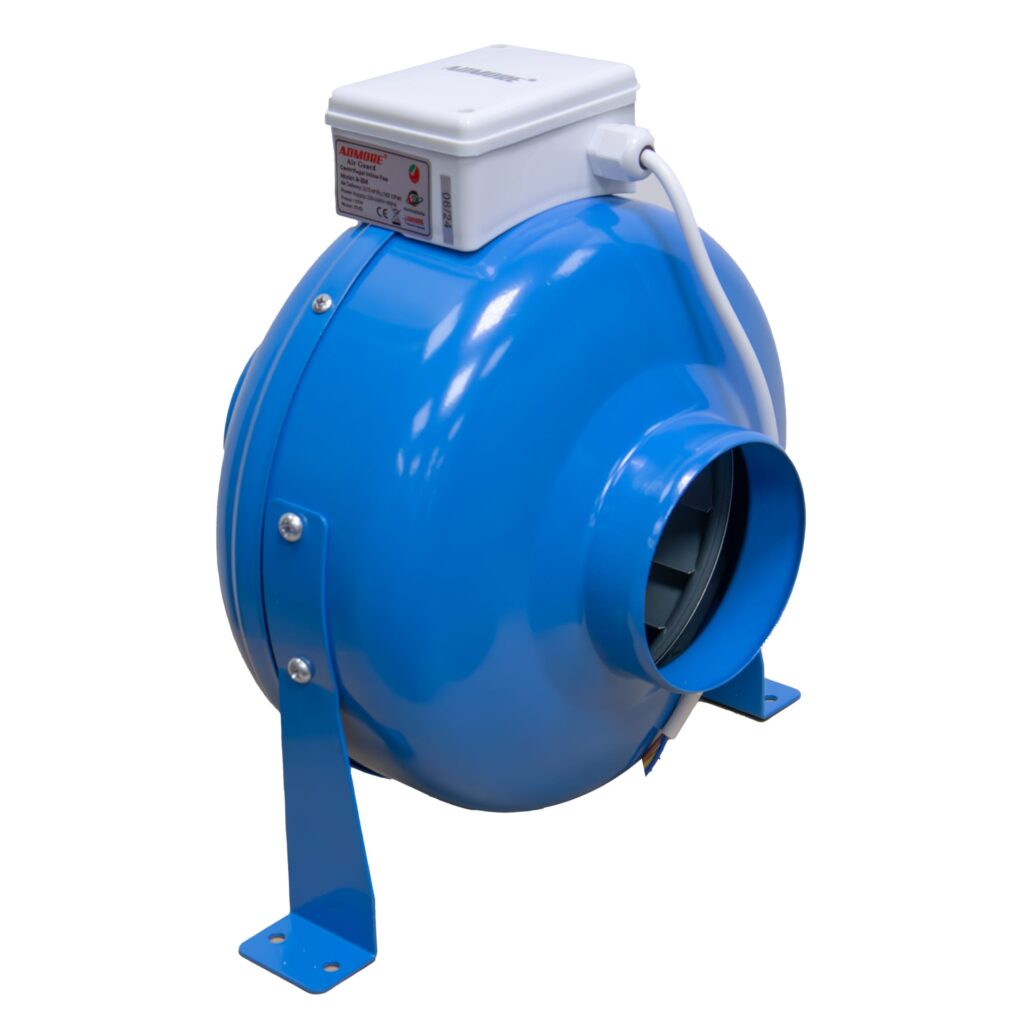

Round powder-coated metal body in cobalt blue, with metal impeller blades inside the duct chamber and a white plastic junction box on top housing the electrical connections. Two powder-coated steel mounting feet at the base for screw-fixing to a wall, ceiling or duct frame. Sized for 4-inch (100mm) duct systems.
Compliance & Certifications
Carries CE, RoHS, G.Mark and ESMA certifications, meeting EU and UAE electrical safety, restricted-substance and product-conformity standards for the GCC market. Operates on 220-240V single-phase mains at 50Hz, drawing 65W at full speed. Noise output is rated at 35dB.
Applications
Residential bathroom and kitchen extraction, small grow tents (60×60cm and 80×80cm), pantry and utility room ventilation, small server cabinets and electronics enclosures. Common where a flat-fan or axial fan lacks pull and a full commercial inline is more than the space needs.
Installation Notes
Mounts horizontally or vertically along the duct run using the supplied mounting feet. Can be suspended from above with rope-ratchet hangers in grow rooms or screw-mounted to a wall or ceiling for permanent installations. Compatible with 4-inch (100mm) flexible or rigid ducting on both inlet and outlet sides.
