Admore 12″ Heavy Duty Centrifugal Inline Duct Fan — Metal, 1115 CFM (A-ID12)
750.000 .د.ب
The Admore A-ID12 12″ Heavy-Duty Centrifugal Inline Duct Fan delivers 1,115 CFM (1,885 m³/h) at 56 dB from a 215 W single-phase 220-240 V motor (2,390 RPM). Blue powder-coated metal body, 300 mm duct collars — top of the AID range for industrial-grade extraction with strong static-pressure capability.
- Free delivery Orders over AED 200
- Manufacturer warranty Coverage on every brand
- Easy returns 7-day return window
Buying in bulk?
Open a trade account for wholesale pricing, credit terms and priority support.
Open a Trade AccountSpecifications
Additional information
| Brand | Admore |
|---|---|
| Model | A-ID12 |
| Type of Fan | Heavy-Duty Centrifugal Inline Duct Fan |
| Mounting Type | Ceiling / Wall Mount |
| Voltage | 220-240V/50Hz |
| Power Consumption (W) | 215 W |
| Phase | Single |
| Body Material | Metal (Blue Powder-Coated) |
| Blade Material | Metal |
| Blade Diameter | 12" (300 mm) |
| Duct Size | 12" (300 mm) |
| Color | Blue |
| Blade Speed (RPM) | 2,390 RPM |
| Airflow (CFM) | 1,115 CFM |
| Airflow (m³/h) | 1,885 m³/h |
| Noise Level (dB) | 56 dB |
| Operating Environment | -10°C to +50°C |
| Warranty | 2 Years |
| Safety certifications | CE, RoHS, G.Mark, ESMA |
Description
Description
Overview
The Admore A-ID12 is a 12-inch metal centrifugal inline duct fan in cobalt blue, designed for inline installation on 300mm flexible or rigid ducting. Balanced metal impeller blades spin at 2390 RPM to move 1115 CFM (1885 m³/h) of air — the highest airflow in the A-ID range.
Construction & Materials

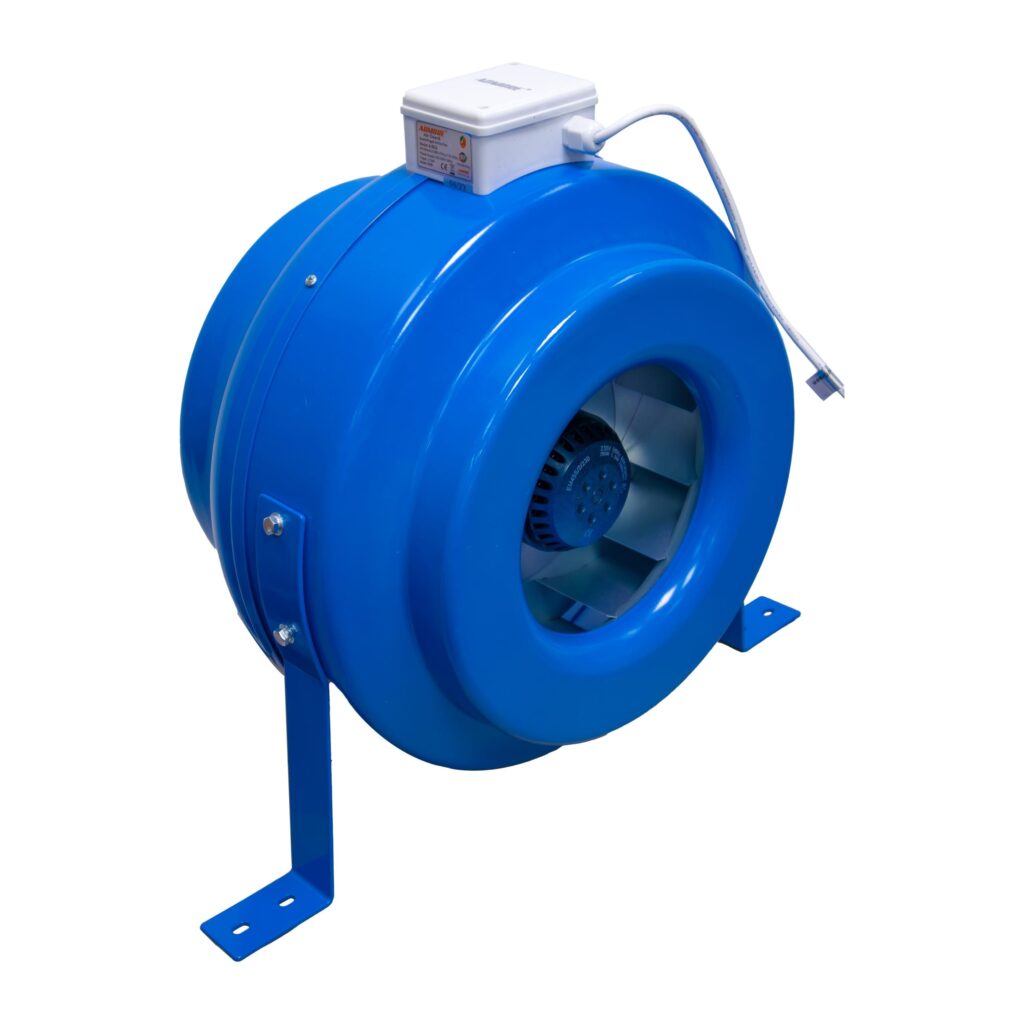

Round powder-coated metal body in cobalt blue, with metal impeller blades inside the duct chamber and a white plastic junction box on top housing the electrical connections. Two powder-coated steel mounting feet at the base for screw-fixing to a wall, ceiling or duct frame. Sized for 12-inch (300mm) duct systems.
Compliance & Certifications
Carries CE, RoHS, G.Mark and ESMA certifications, meeting EU and UAE electrical safety, restricted-substance and product-conformity standards for the GCC market. Operates on 220-240V single-phase mains at 50Hz, drawing 215W at full speed. Noise output is rated at 56dB.
Applications
Industrial workshops, commercial-scale grow operations, restaurant hot-line ducting, automotive paint and welding booths, and high-volume extraction for densely populated commercial floors where smaller inline fans cannot move enough air for the volume.
Installation Notes
Mounts horizontally or vertically along the duct run using the supplied mounting feet. Can be suspended from above with rope-ratchet hangers in grow rooms or screw-mounted to a wall or ceiling for permanent installations. Compatible with 12-inch (300mm) flexible or rigid ducting on both inlet and outlet sides.
