Airex 8″ Heavy Duty Centrifugal Inline Duct Fan — Metal, 559 CFM (XC-200)
310.000 .د.ب
The Airex XC-200 8″ (200 mm) Heavy-Duty Centrifugal Inline Duct Fan delivers 559 CFM (950 m³/h) against 345 Pa static pressure at 52 dB. Light-grey powder-coated metal body, 2,600 RPM single-phase 157 W motor, IP44, max ambient 65 °C. Sized for 8″ commercial extraction.
- Free delivery Orders over AED 200
- Manufacturer warranty Coverage on every brand
- Easy returns 7-day return window
Buying in bulk?
Open a trade account for wholesale pricing, credit terms and priority support.
Open a Trade AccountSpecifications
Additional information
| Brand | Airex |
|---|---|
| Model | XC-200 |
| Type of Fan | Centrifugal Inline Fan |
| Mounting Type | Ceiling Mount/Wall Mount |
| Voltage | 220-240V/50Hz |
| Power Consumption | 157W |
| Phase | Single |
| Body Material | Metal (Light Grey Powder-Coated) |
| Blade Material | Metal |
| Duct Size | 8" (200mm) |
| Color | Light Grey |
| Blade Speed | 2600 RPM |
| Airflow (CFM) | 559 CFM |
| Airflow (m³/h) | 950 m³/h |
| Static Pressure | 345 Pa |
| Noise Level | 52 dB |
| Operating Environment | -10°C to +50°C |
| IP Rating | IP44 |
| Warranty | 2 Years |
| Safety Certifications | CE, RoHS |
Description
Description
Overview
The Airex XC-200 is an 8-inch metal centrifugal inline duct fan in light grey, designed for 200mm ducting. The centrifugal impeller spins at 2600 RPM to deliver 559 CFM (950 m³/h) at 345 Pa of static pressure — suitable for commercial kitchen extract systems and mid-size grow operations.
Construction & Materials

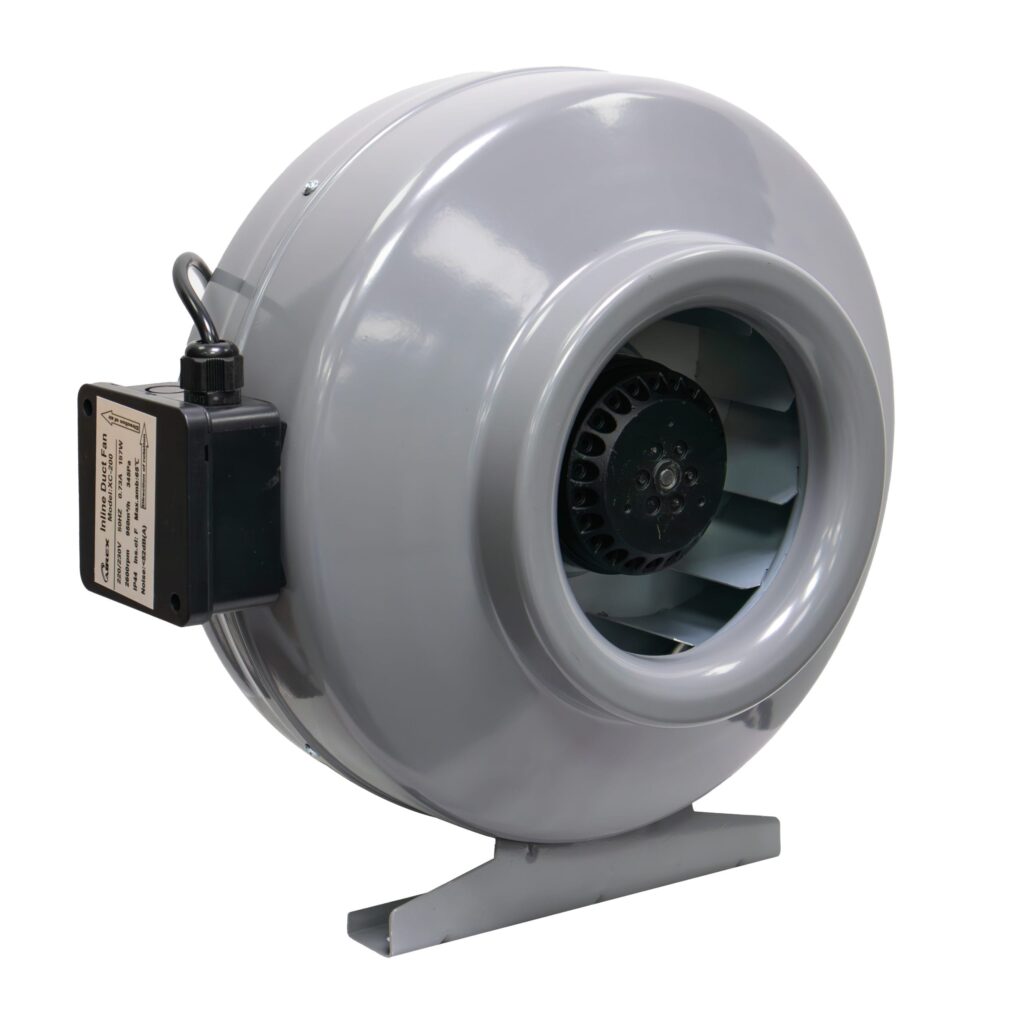

Round metal scroll housing in light grey with forward-curved centrifugal impeller visible inside the duct chamber. Black plastic junction box on the side houses electrical terminals. Single steel mounting foot for wall, ceiling or duct frame mounting.
Compliance & Certifications
Carries CE and RoHS certifications. Operates on 220-240V single-phase mains at 50Hz, drawing 157W at full speed. Noise output 52dB. Rated for operating environments of -10°C to +50°C. 2-year warranty.
Applications
Commercial kitchens, mid-size grow rooms (1.5×1.5m to 2×2m), restaurant ventilation, hobbyist workshops and light-industrial enclosures where 6-inch ducting can’t move enough air for the space. Centrifugal pressure handles longer duct runs with bends and inline carbon filters.
Installation Notes
Mounts horizontally or vertically along the duct run. Can be suspended with rope-ratchet hangers in grow rooms or screw-mounted to walls or ceilings. Compatible with 8-inch (200mm) flexible or rigid ducting on inlet and outlet.
