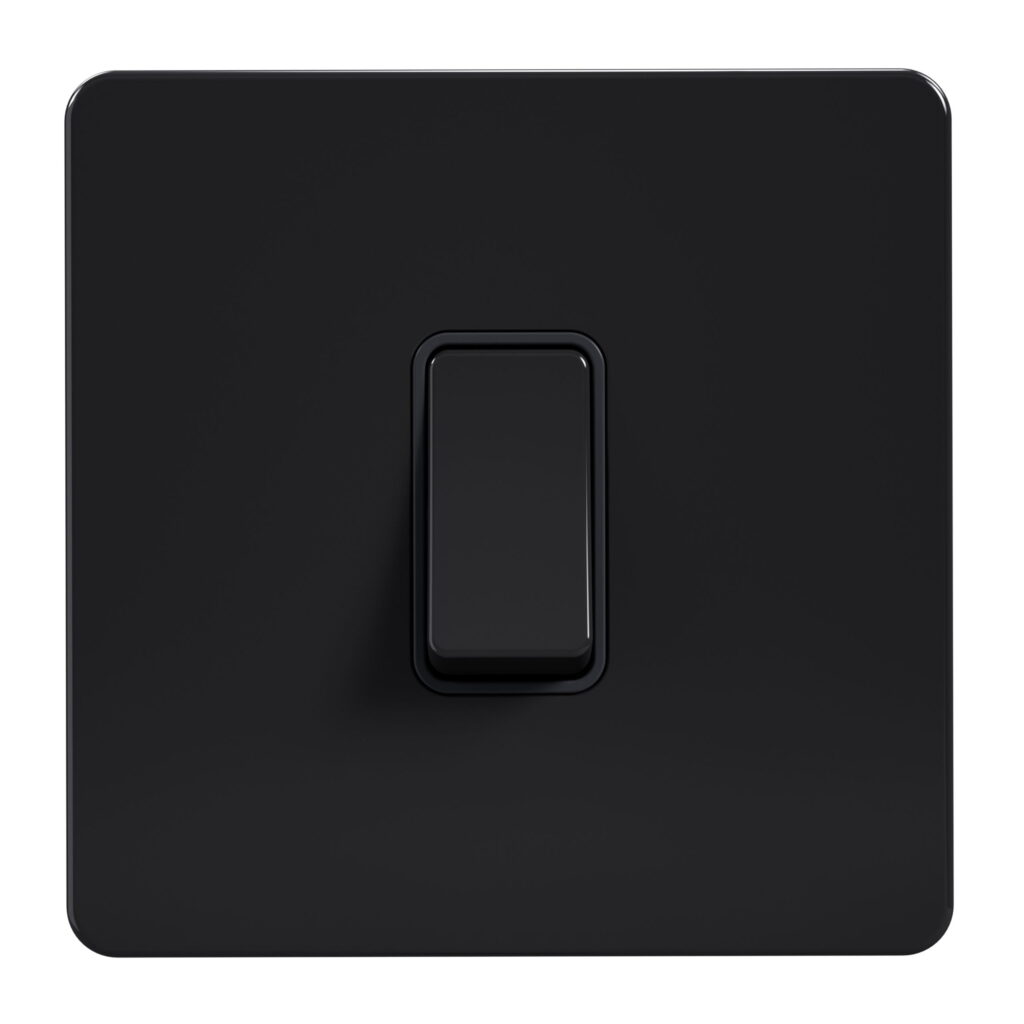

Admore AB302 — 10A 1 Gang 2-Way Light Switch, Single Rocker, Gloss Black Screwless Plate (Metal Series: Black Nickel)
34.000 .د.ب
The Admore AB302 is a 10A 1-gang 2-way light switch on a gloss-black screwless stainless-steel plate (Metal Series: Black Nickel). Single black rocker, black surround, no neon indicator. 220–240V AC. Captive copper pillar terminals with captive screws, earth terminal included, 25 mm minimum back-box depth, UK BS 4662 fixing centres (60.3 mm). BS EN 60669-2-1 compliant, IP20 indoor. Backed by the Admore 25-Year Metal Series guarantee.
- Free delivery Orders over AED 200
- Manufacturer warranty Coverage on every brand
- Easy returns 7-day return window
Buying in bulk?
Open a trade account for wholesale pricing, credit terms and priority support.
Open a Trade AccountSpecifications
Additional information
| Brand | Admore |
|---|---|
| Series | Metal Series: Black Nickel |
| Model Number | AB302 |
| Product Type | 1 Gang 2-Way Light Switch |
| Number of Gangs | 1 |
| Switch Way | 2 Way |
| Amp Rating | 10 A |
| Voltage | 220–240 V AC |
| Faceplate Format | 1-gang square |
| Plate Finish | Gloss Black |
| Plate Style | Screwless flat plate |
| Switch Action | Single-Pole, 2-Way Rocker |
| Number of Rockers | 1 |
| Surround / Insert Color | Black |
| Neon / LED Indicator | No |
| Earth Terminal | Yes — captive earth terminal |
| Terminal Type | Pillar terminals with captive screws |
| Terminal Material | Copper |
| Back-Box Depth (min) | 25 mm |
| Fixing Centres | 60.3 mm (UK BS 4662 standard) |
| Mounting | Flush mount to 1-gang BS 4662 back-box |
| IP Rating | IP20 |
| Insulation Class | Class I (earthed) |
| Standards Compliance | BS EN 60669-2-1, BS 4662 |
| Certifications | CE, RoHS |
| Box Contents | 1× switch, 2× black-matched screws, installation guide |
| Warranty / Guarantee | 25 Years |
| Manufacturer Guarantee | 25 Years |
Description
Description
Overview
The Admore AB302 is a 1-gang 2-way light switch from the Metal Series: Black Nickel range. Single rocker on a square 1-gang faceplate, finished in gloss black with a screwless flat plate and matching black switch insert. “2-way” means it can be wired as either a one-way switch or as part of a two-way circuit (so a single light can be controlled from two locations such as the top and bottom of a staircase).
Construction
The faceplate is pressed stainless steel with an electroplated gloss-black finish. The screwless design hides the fixing screws beneath the plate for a clean architectural look. Internally the switch uses copper pillar terminals with captive screws — captive screws stay attached to the terminal as you wire, which speeds installation and prevents lost hardware behind the back-box. The earth terminal is captive and clearly marked.
Switch action
Single black rocker actuates a 2-way mechanism rated at 10 A, 220–240 V AC. No neon or LED indicator on the rocker. The unit can be wired as either a one-way (single-location) or two-way (multi-location) switch depending on your circuit layout.
Installation
The AB302 mounts flush into a standard 1-gang UK BS 4662 metal or plastic back-box with the conventional 60.3 mm fixing centres. Minimum back-box depth is 25 mm.
Electrical specifications
Rated current: 10 A
Rated voltage: 220–240 V AC
Frequency: 50 Hz
Switch: Single-pole, 2-Way Rocker
IP rating: IP20 (indoor)
Insulation class: Class I (earthed)
Compliance & certifications
BS EN 60669-2-1 (electronic switches for household installations) · BS 4662 (mounting boxes) · CE · RoHS
Guarantee
Backed by the Admore 25-Year Metal Series Manufacturer’s Guarantee (T&Cs apply).
Box contents
1× AB302 switch · 2× black-matched fixing screws · Installation guide
