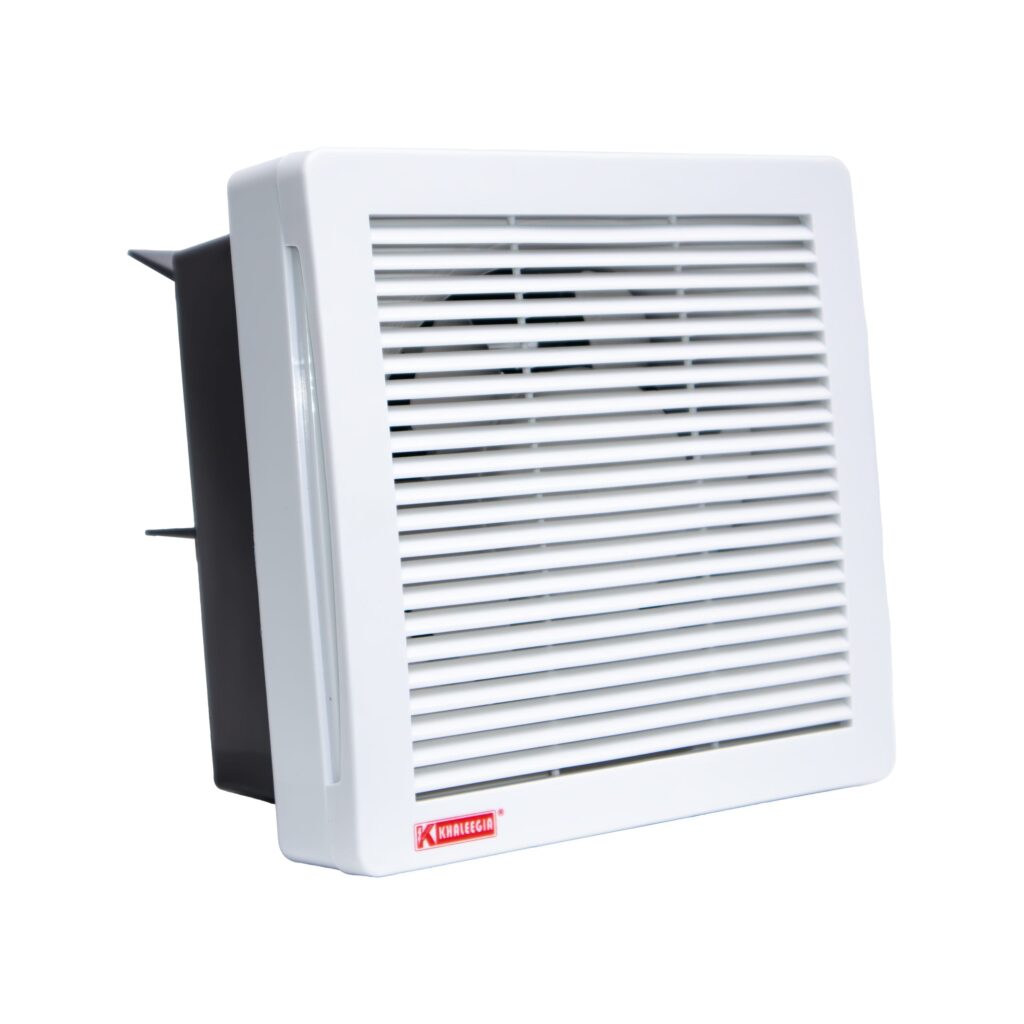

Khaleegia 10″ Square Wall Exhaust Fan — Gravity Shutter, 508 CFM (K-AG10)
100.000 .د.ب
The Khaleegia K-AG10 10″ Square Wall Exhaust Fan delivers 508 CFM (863 m³/h) at 42 dB from a 37 W single-phase 220-240 V motor. White PVC body with horizontal-louvre grille and gravity-shutter side flap. Recess cut-hole 290 mm. Sized for larger bathrooms, kitchens and small workshops.
- Free delivery Orders over AED 200
- Manufacturer warranty Coverage on every brand
- Easy returns 7-day return window
Buying in bulk?
Open a trade account for wholesale pricing, credit terms and priority support.
Open a Trade AccountSpecifications
Additional information
| Brand | Khaleegia |
|---|---|
| Model | K-AG10 |
| Type of Fan | Square Wall Exhaust Fan |
| Mounting Type | Wall Mount |
| Voltage | 220-240V/50Hz |
| Power Consumption (W) | 37 W |
| Phase | Single |
| Body Material | PVC |
| Blade Material | PVC |
| Grill Material | PVC |
| Blade Diameter | 10" (250mm) |
| Color | White |
| Shutter | Gravity Shutter |
| Airflow (CFM) | 508 CFM |
| Airflow (m³/h) | 863 m³/h |
| Noise Level (dB) | 42 dB |
| Operating Environment | -10°C to +40°C |
| Cut-Hole Size | 290 mm |
| Warranty | 2 Years |
| Safety certifications | CE, RoHS, G.Mark, ESMA |
Description
Description
Overview
The K-AG10 is a 10″ (250 mm) square wall-mounted exhaust fan with an integral gravity shutter, for the extraction of stale air, moisture and odours from interior spaces.
Features
- Integral gravity shutter that opens under airflow and closes when the fan stops, preventing back-draught and the ingress of outdoor air, dust and insects.
- PVC body, blades and grille, in a white finish.
- Single-phase operation on a standard 220-240 V / 50 Hz supply.
- Surface wall mounting, with a 290 mm cut-out.
- Certified to CE, RoHS, G.Mark and ESMA.
Technical specifications
- Type: square wall exhaust fan with gravity shutter
- Blade diameter: 10″ (250 mm); wall cut-out: 290 mm
- Power supply: 220-240 V / 50 Hz, single phase; 37 W
- Airflow: 508 CFM (863 m³/h); noise level: 42 dB
- Operating temperature: -10 °C to +40 °C
- Construction: PVC (body, blades and grille), white
- Warranty: 2 years
Applications
Bathrooms, kitchens, utility rooms and similar areas requiring intermittent or continuous ventilation.
