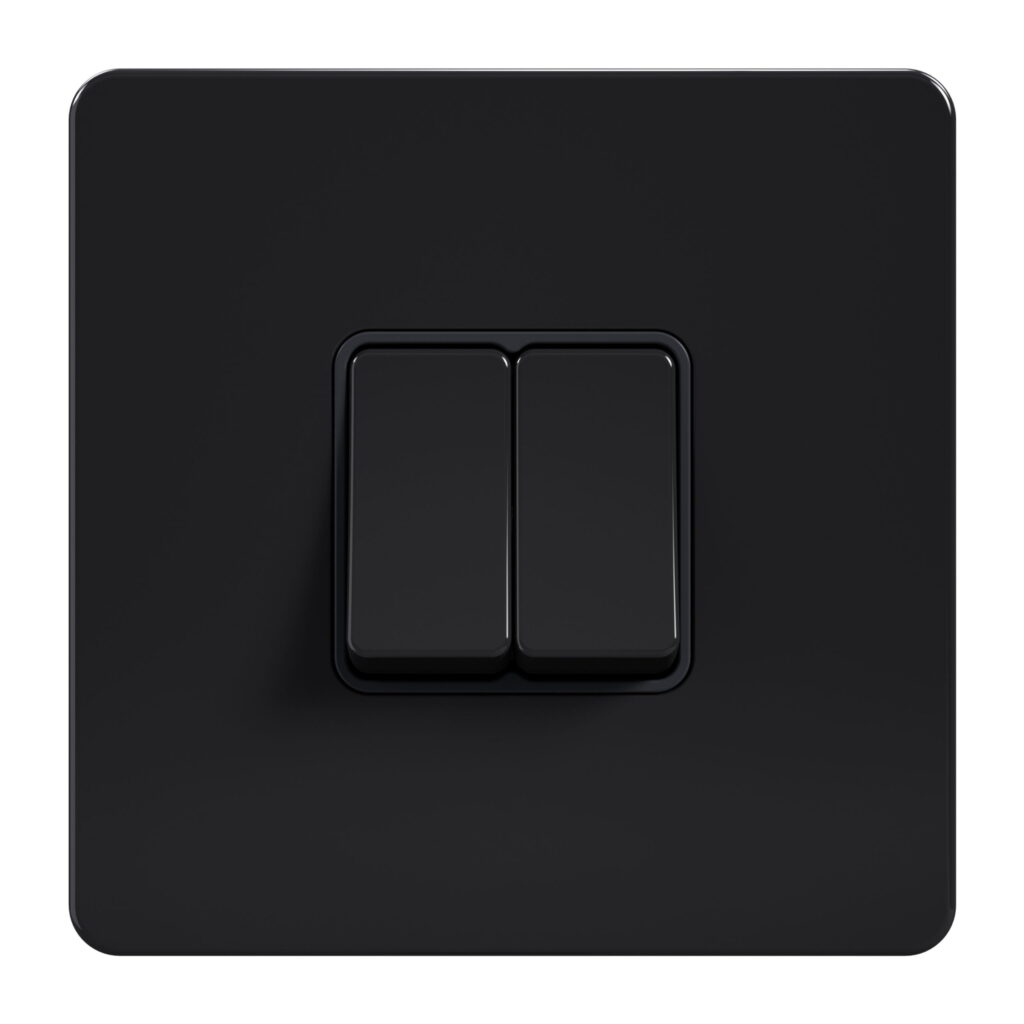

Admore AB304 — 10A 2 Gang 2-Way Light Switch, Twin Rockers, Gloss Black Screwless Plate (Metal Series: Black Nickel)
35.000 .د.ب
The Admore AB304 is a 10A 2-gang 2-way light switch on a gloss-black screwless stainless-steel 1-gang square faceplate (Metal Series: Black Nickel). Two black rockers side-by-side controlling two independent circuits, each independently switchable as one-way or two-way. 220–240V AC. Captive copper pillar terminals with captive screws, earth terminal included, 25 mm minimum back-box depth, UK BS 4662 fixing centres (60.3 mm). BS EN 60669-2-1 compliant, IP20 indoor. Backed by the Admore 25-Year Metal Series guarantee.
- Free delivery Orders over AED 200
- Manufacturer warranty Coverage on every brand
- Easy returns 7-day return window
Buying in bulk?
Open a trade account for wholesale pricing, credit terms and priority support.
Open a Trade AccountSpecifications
Additional information
| Brand | Admore |
|---|---|
| Series | Metal Series: Black Nickel |
| Model Number | AB304 |
| Product Type | 2 Gang 2-Way Light Switch |
| Number of Gangs | 2 |
| Switch Way | 2 Way |
| Amp Rating | 10 A per gang |
| Voltage | 220–240 V AC |
| Faceplate Format | 1-gang square |
| Plate Finish | Gloss Black |
| Plate Style | Screwless flat plate |
| Switch Action | 2× Single-Pole, 2-Way Rocker |
| Number of Rockers | 2 |
| Surround / Insert Color | Black |
| Neon / LED Indicator | No |
| Earth Terminal | Yes — captive earth terminal |
| Terminal Type | Pillar terminals with captive screws |
| Terminal Material | Copper |
| Back-Box Depth (min) | 25 mm |
| Fixing Centres | 60.3 mm (UK BS 4662 standard) |
| Mounting | Flush mount to 1-gang BS 4662 back-box |
| IP Rating | IP20 |
| Insulation Class | Class I (earthed) |
| Standards Compliance | BS EN 60669-2-1, BS 4662 |
| Certifications | CE, RoHS |
| Box Contents | 1× switch, 2× black-matched screws, installation guide |
| Warranty / Guarantee | 25 Years |
| Manufacturer Guarantee | 25 Years |
Description
Description
Overview
The Admore AB304 is a 2-gang 2-way light switch from the Metal Series: Black Nickel range. Two independent black rockers side-by-side on the same 1-gang square faceplate, each controlling its own circuit. Each rocker can be wired either as one-way (single-location) or as part of a two-way circuit so the same light can be operated from two locations.
Construction
The faceplate is pressed stainless steel with an electroplated gloss-black finish. Screwless flat plate. Internally the switch uses copper pillar terminals with captive screws, plus a captive earth terminal.
Switch action
Two black rockers, each rated 10 A, 220–240 V AC. No neon or LED indicators. Each rocker is single-pole 2-way.
Installation
Flush mount to a standard 1-gang UK BS 4662 back-box, 60.3 mm fixing centres, 25 mm minimum depth.
Electrical specifications
Rated current per gang: 10 A · Voltage: 220–240 V AC · Frequency: 50 Hz · Switch: 2× Single-pole, 2-Way Rockers · IP: IP20 · Insulation: Class I
Compliance
BS EN 60669-2-1 · BS 4662 · CE · RoHS
Guarantee
25-Year Admore Metal Series Manufacturer’s Guarantee (T&Cs apply).
Box contents
1× AB304 switch · 2× black-matched fixing screws · Installation guide
